Magic 3D Matrix

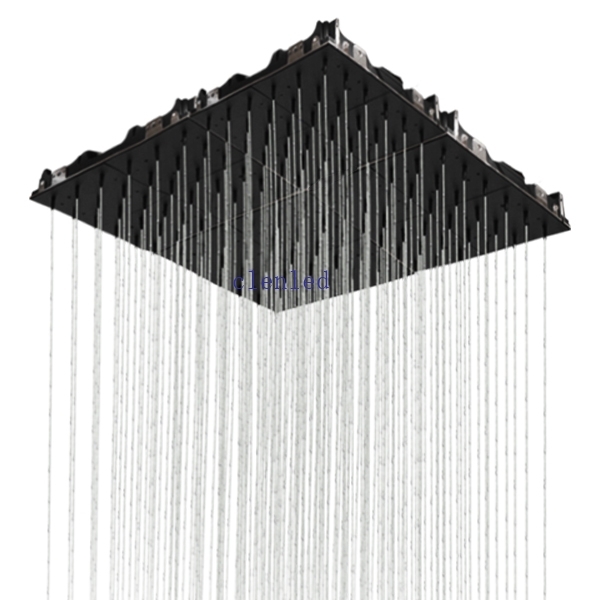

Magic 3D Matrix Light

MODEL：CL-3DP83-3M

AC110-220V wide voltage power supply, Art-Net signal input;

Built-in controller design, simple and convenient control;

Art-Net signal control, can be cascaded for multiple use;

Each box supports 36 pcs leather wire lights, 1296 pixels (3m length), and supports customization;

The maximum of cabinet which can be cascaded is 254pcs;

Magnet + lock double installation protection, more stable structure;

Cabinet installation, better area coverage effect;

Can be used with ARTNET protocol software (MAD-SHOW, MADRIX), support offline use;

Support remote program upgrade;

Application: commercial venues, exhibition management, hotels, etc;

Description


Working voltage(AC)：A110-220V                  Box Matrix power：135W

Control Mode：Art-Net/SD Card                     Channel：RGB

Number of Cascade Units：254PCS              Product Weight：9KG

Pixel Spacing：83mm                                     Box Matrix Pixel：1296PCS

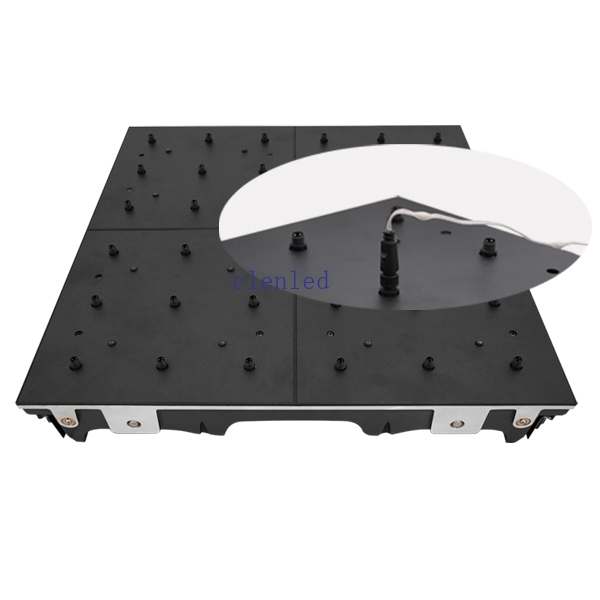

The module has a magnetic connection + lock to double fix the box
The back of the module is fixed magnetically close to the cabinet;
Follow the instructions on the cabinet icon and turn the lock on the backof the module to complete the fixed installation;




Plug the leather wire lights one by one

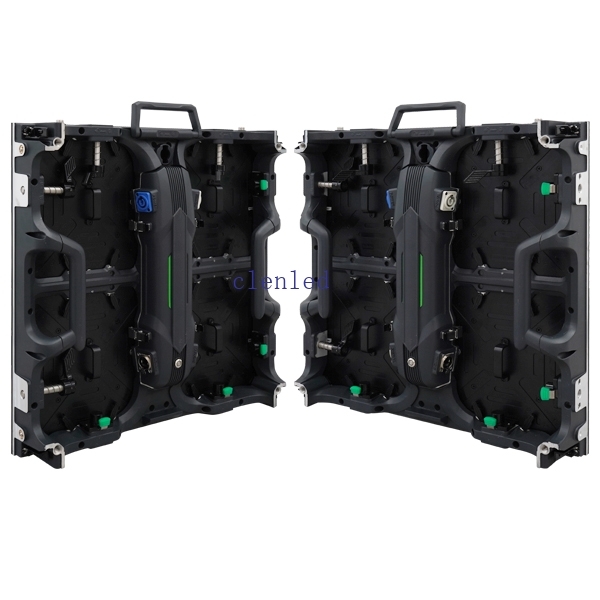

Cabinet connection



After aligning the cabinet, press the lock into the cabinet according to the direction indicated
by the lock and turn the lock to lock it;



Press the green unlocking switch to open the lock;



 Cabinet wiring



Power cable cascade: connect the output of the previous cabinet with the input
of the next cabinet to complete the power cascade (The maximum of cabinet
power cable can cascade is 12 cabinets)



Network cable cascade: The signal output of the previous cabinet is connected to the
signal input of the next cabinet to complete the signal cascade;



Note: The left side of the cabinet is the signal input port, and the right side is the signal
output port. Please connect them correctly.



 Button Operation Instructions

Mode Switch              Long press the button for 3S-8S (release the button after it flashes to  complete
                                  the mode switch.Currently,there are two modes: Art-Net and SD card.

SD card mode           In SD card mode, click the button to switch the built-in effects of the controller.
Upgrade mode          Press and hold the button to power on. Release the button after the button light
                                  comes on. When the green signal light flashes, the upgrade starts. When the
                                  flashing stops, the upgrade is complete.

Factory restore          Long press the button for 10S (release the button after the button light goes out
                                  to complete the factory reset)

Channel list

Channel       Name                     Number                  Direction

1                  Mode selection       000-247                 Use 31 build-in lighting effects (one effect for every
                                                                                  8 addresses, and 0-7 for SD card effect 1)
                                                   248-247                 Switch to ART_NET mode

2                  Speed                     000-255                 0 is the slowest speed, 255 is the fastest speed, SD
                                                                                  card mode is valid

3                  Brightness              000-255                  0 is brightness off, 255 is the brightest brightness,
                                                                                  SD card mode is valid

4                  R-mask                   000-255                 Delete the red in the effect, 000 is the original effect,
                                                                                  255 means delete all the red in the effect

5                  G-mask                   000-255                 Delete the green in the effect, 000 is the original effect,
                                                                                  255 means delete all the green in the effect

6                  B-mask                   000-255                 Delete the blue in the effect, 000 is the original effect,
                                                                                 255 means delete all the blue in the effect

7                  Invalid                     000-007

                    Constant light         008-015                  Always bright white, color can be selected through mask
                                                                                  (brightness, mask channel is valid)

                    Strobe                     016-255                 The larger the value, the faster the strobe (speed,
                                                                                  brightness,mask channel is valid)

8                  Invalid                     000-200

                    Record                    201-255                 When the value of channel 4.5.6 is 255, recording is
                                                                                  valid,and the ART_NET effect is recorded to the file
                                                                                  specified by channel 1
