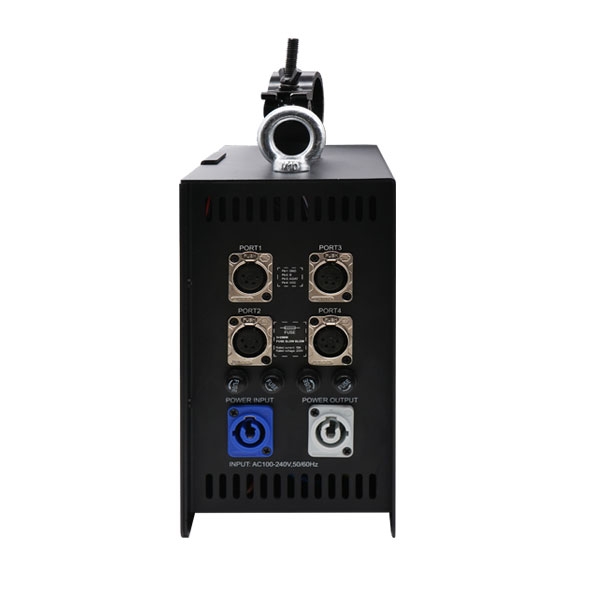

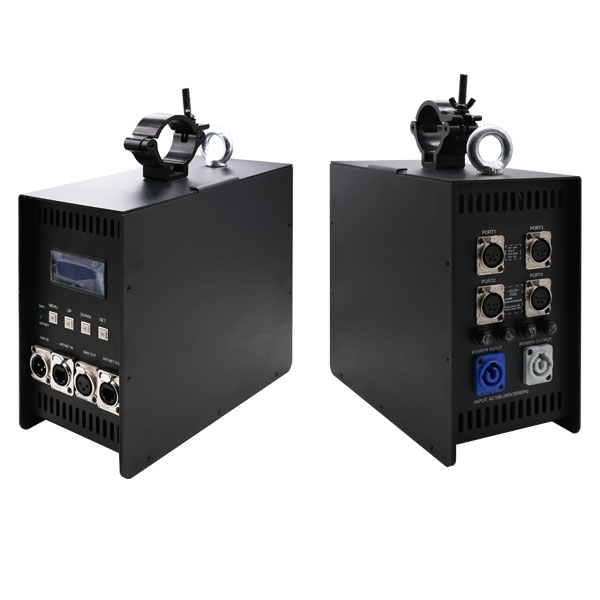

Working voltage: AC100-240V Output voltage: DC24V
Power: 1000W Output port: 4PCS
Control mode: ART-NET/DMX/sACN Working mode: ARTNET/SD Card/RING
Port loading points: 4*680PCS Cascaded units: 254

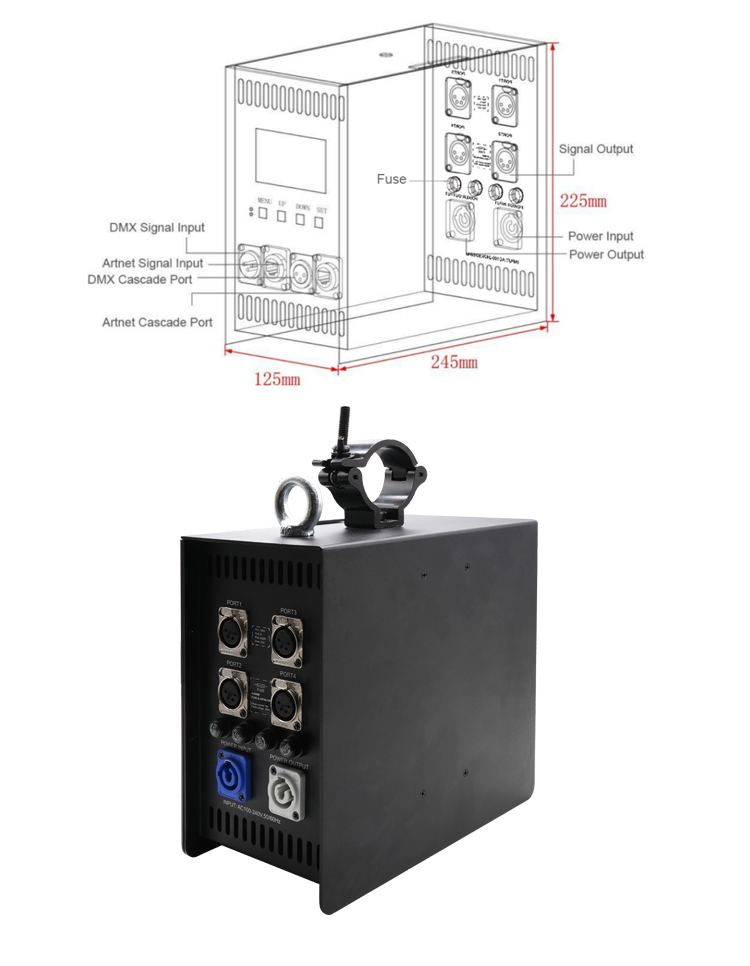

Product size(L*W*H): 245*225*125MM Gross weight: 3.5KG

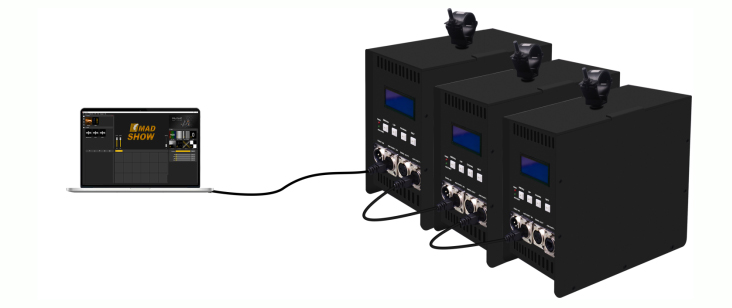

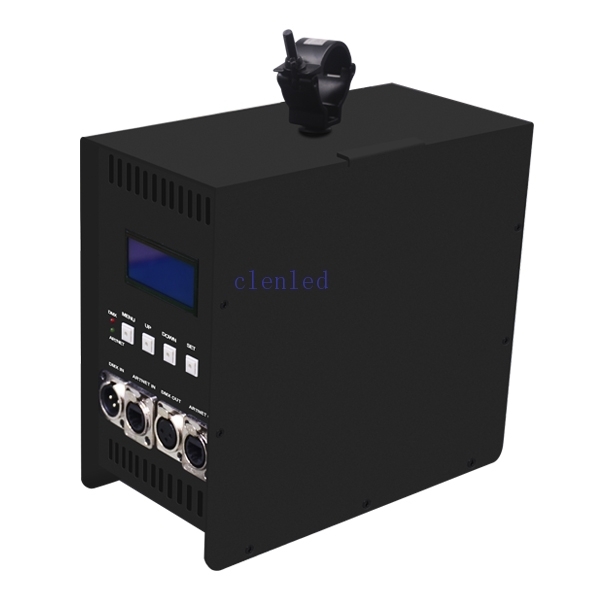

Artnet connect controller

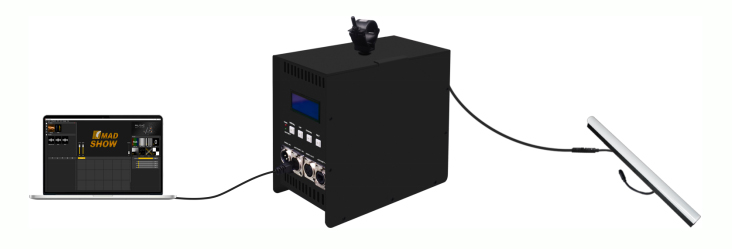

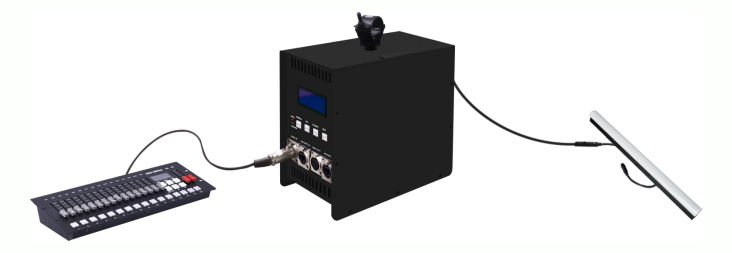

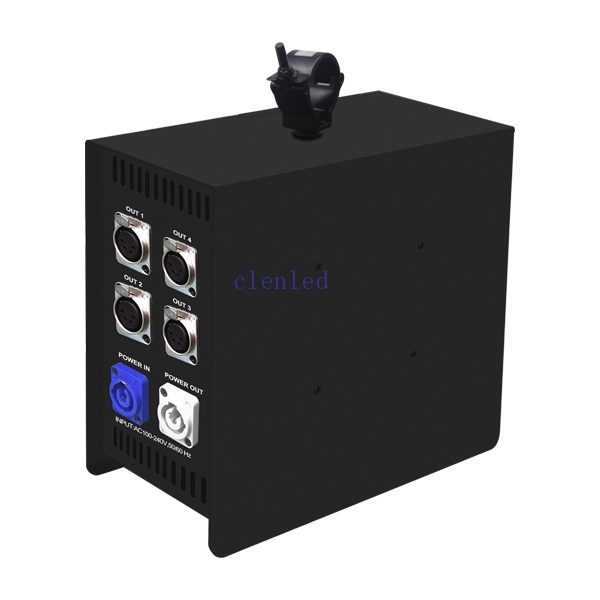

Connect the XLR cable to the output of the controller and the input of the tube
Multiple units can be used in cascade
Connect the network cable to the output port and the input port of the next controller
Multiple units can be used in cascade
Connect the network cable to the output port and the input port of the next controller
DMX Channel Table Description
Channel Name Figure Instructions
1 Mode selection 000-247 Call internal 31 effects (one effect for every 8 addresses,
and 0-7 for SD card effect 1)
248-255 Switch to ART_NET mode
2 Speed 000-255 0 is the slowest speed, 255 is the fastest speed, SD card
mode is valid
3 Brightness 000-255 0 is the brightness off, 255 is the brightest, SD card mode
is valid
4 R- mask 000-255 Subtract red from the effect. 000 is the original effect,
and 255 means subtract all red from the effect
5 G-mask 000-255 Subtract green from the effect. 000 is the original effect,
and 255 is subtracting all green from the effect
6 B-mask 000-255 Subtract the blue in the effect. 000 is the original effect 255
means subtract all the blue in the effect
7 Invalid 000-007
Normally on 008-015 Constant bright white, color selection by mask (brightness,
mask channel available)
Stroboscopic 016-255 The higher the value, the faster the strobe (speed,
brightness,mask channel is effective)
8 Invalid 000-200
Record 201-255 When the value of channel 4.5.6 is 255, the recording is valid
and the ART_NET effect is recorded to the file specified by
channel 1

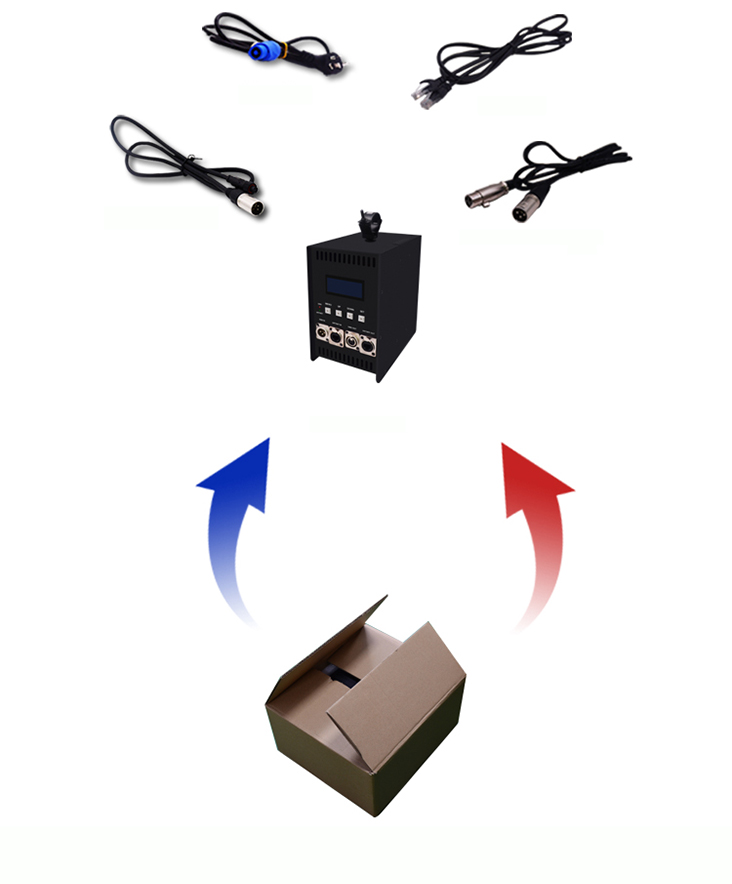

Product packaging
Channel Name Figure Instructions
1 Mode selection 000-247 Call internal 31 effects (one effect for every 8 addresses,
and 0-7 for SD card effect 1)
248-255 Switch to ART_NET mode
2 Speed 000-255 0 is the slowest speed, 255 is the fastest speed, SD card
mode is valid
3 Brightness 000-255 0 is the brightness off, 255 is the brightest, SD card mode
is valid
4 R- mask 000-255 Subtract red from the effect. 000 is the original effect,
and 255 means subtract all red from the effect
5 G-mask 000-255 Subtract green from the effect. 000 is the original effect,
and 255 is subtracting all green from the effect
6 B-mask 000-255 Subtract the blue in the effect. 000 is the original effect 255
means subtract all the blue in the effect
7 Invalid 000-007
Normally on 008-015 Constant bright white, color selection by mask (brightness,
mask channel available)
Stroboscopic 016-255 The higher the value, the faster the strobe (speed,
brightness,mask channel is effective)
8 Invalid 000-200
Record 201-255 When the value of channel 4.5.6 is 255, the recording is valid
and the ART_NET effect is recorded to the file specified by
channel 1
Product packaging
